TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm

Product Description

TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm



TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm

Product Description



TYPE

Cross section

Wire struct

Conductor diameter

Outer diameter

Conductor resistance

Rated voltage

Rated current

mm2

No.OD (mm)

mm

mm

Ω/Km

V AC/DC

A

1X2.5mm2

2.5

48XΦ0.25

2.0

5.2

8.06

1000/1800

30

1X4.0mm2

4.0

56XΦ0.30

2.6

6.2

4.97

1000/1800

50

1X6.0mm2

6.0

81XΦ0.30

3.3

7.2

3.52

1000/1800

70

1X10mm2

10

74XΦ0.40

4.4

8.3

2.12

1000/1800

95

2X2.5mm2

2.5

48XΦ0.25

2.0

6.2*9.90

8.06

1000/1800

30

2X4.0mm2

4.0

56XΦ0.30

2.6

6.9*11.30

4.97

1000/1800

50

2X6.0mm2

6.0

81XΦ0.30

3.3

7.1*14.50

3.52

1000/1800

70

Technical Data

Certificate of  solar cable

TUV

Wire of solar cable

Class5,tinned copper

Insulation material of solar cables

XLPE

Voltage Rate of solar cable

1000/1800V

Cores of solar cable

1-2 cores

Range of Nominal cross section:

1.5--10mm2

Standard  of solar cable

TUV 2PfG 1169/IEC

Temperature range of solar cable

-40~+90°C

Flame test standard of solar cable

DIN EN50265-2-1 UL1571(VW-1).

Smallest permissible bending radius

5XD

Color of solar cable

Black/red

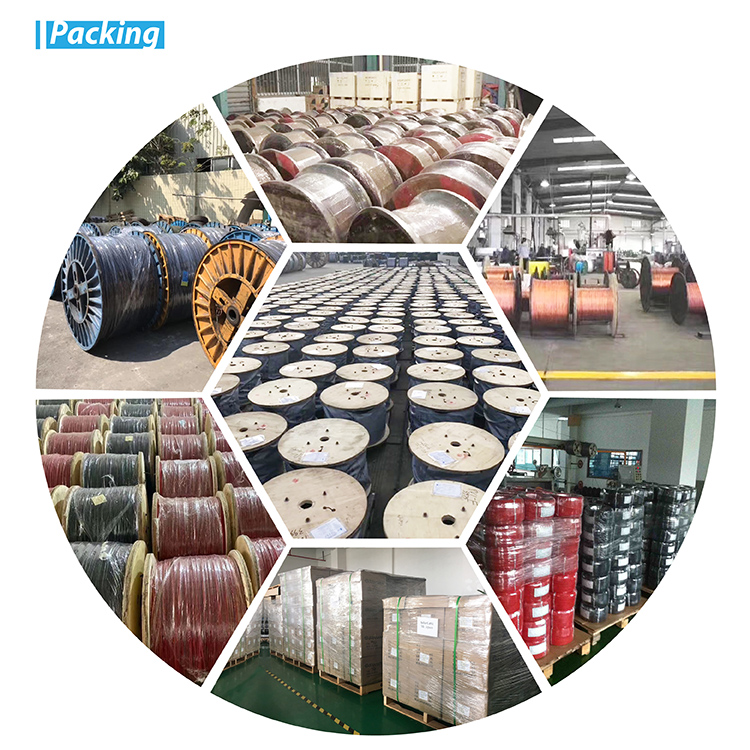

Packing of solar cable

100 meter/roll for small size, wooden drum for big size, or as per requirement

MOQ of solar cable

100M

Delivery time of solar cable

3-7 days

Application of solar cable

These cables are used for solar power plant,solar energy power station.




 TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm

TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mmTUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm
Buyer Feedback

TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm

TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mmTUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm
More products:





TUV Approval Double XLPE Insulation Tinned Copper Solar PV Wire Single Core 4mm





















FAQ



Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

Solar Cables,PV Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 12 years experience.



Q2: How can I get the Quotation of the products ?

Send your Message to us by E-mail / TradeManager,We'll reply you within 2 hours in the Working Time.



Q3: How does your company do regarding Quality Control?

1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.



Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

What's more, our R&D team will give you the professional suggestions.



Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.



Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.



If any inquiry, feel free to let me know !
